The Aisle Containment System is a modular row-based thermal containment solution,which separates cold and hot air from equipment to data center. It manages airflow at the source, increases the cooling efficiency and decreases operating costs.


Modular design

Most parts of the aisle containment components are designed by modular, which allows quick deployment on site and address changing needs or future expansion with pay-as-you grow architecture.

Customized design

According to different requirements of customers, different modular design is made to adapt to hot/cold aisle containment, single or dual unit, even in building pillars solution.

Humanized design

●Separate controlled switch device at the roof ceiling, which can make test by each row-based modular as unit.

●Light installation optional.

●Semi-automatic or full-automatic sliding doors are easy for using. Sensor or TCP/IP door access locking system can easily be used to open and close the door, achieving user’s operation optimization.

High intelligent degree

Flip design on roof ceiling, to be connected with fire protection through intelligent control box. The roof ceiling will automatically open, when fire signal received.

And fire-extinguishing gas will come into aisle, without conflict to the existing fire protection system.

Technical Features

Roof Ceiling Components

Rotary roof ceiling

Rotation activity, opening angle 90°

Fixed roof ceiling


Aisle Door Components

Automatic sliding door

Left and right sliding door, Automatic switch

Semi automatic sliding door

Left and right sliding door, Horizontal sliding door,open manually, close automatically

Manual Sliding Door

Left and right sliding door,Horizontal sliding door, manually open and close

Semi automatic swing door

90°swing door opening, manually open, automatic close

Manual Swing Door

90°swing door opening, manually open and close

Power Control Box

It is suitable for the rotary roof ceiling, access door, lighting system power supply in the aisle containment, and the access control system configuration of the access door, supporting the fire linkage function.

Aisle Bottom Seal

Fixed to the bottom of the cabinet, used to close the gap between the cabinet and the ground.

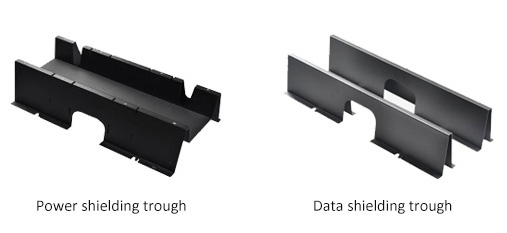

Top Cable Trough

Fix to the top of the cabinet.
