Highlights
Double section structure
Swing frame allows the cabinet to swing away from the wall for easy access to equipments and cabling.
Sturdy welded construction
Fully welded and assembled.
Optional doors
Toughened glass or vented door is optional, which is at your choice.
Big door-opening angle
Turning angle of front door is over 180 degrees; rear door is over 90 degrees.
Technical Features
| Material | SPCC | ||
| Color | RAL7035 or RAL9005 | ||
| Protection category | IP20 to IEC60 529 | ||
| Maximum Static Load | 30KGS | ||
| Finish | Electrostatic powder paint | ||
| Packaging | Assembled | ||
| Complicance | CE,RoHS Certified | ||
| Standard |
Comply with ANSI/EIA-ECA-310-E; DIN41491:PART1.IEC297-2; DIN41494:PART7; GB/T3047.2-92 standard;compatible with ETSI standard |
||
| Supply include |
- Front door and rear swing frame - Side panel - Vertical rail - Top cover - Bottom panel - Enclosure frame(horizantal beam and door frame) - Mounting bracket - L-shaped bracket |
||

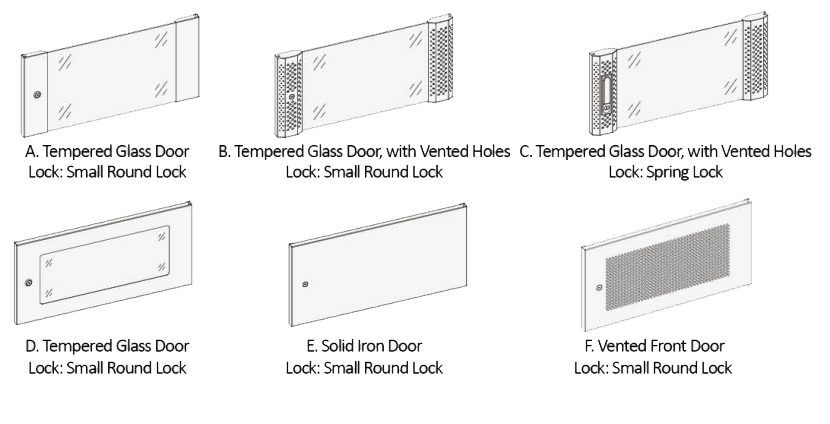

Optional doors
